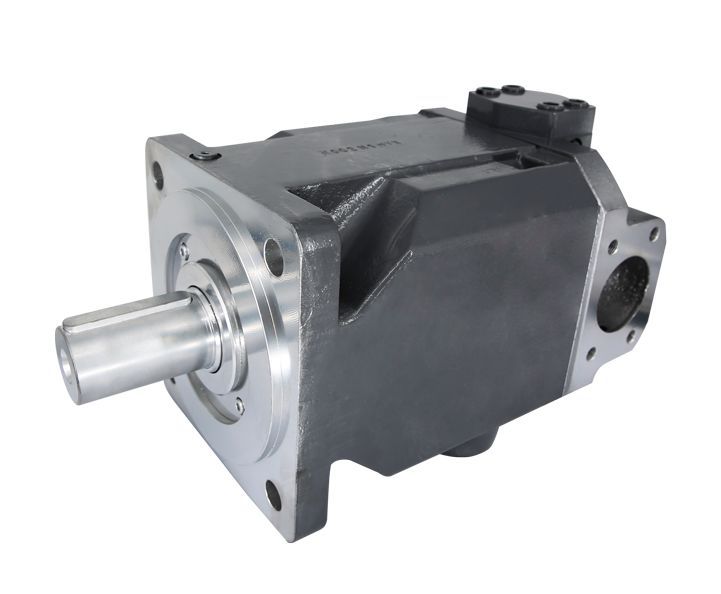

Fixed Displacement Open Circuit Axial Piston Pump, K4FO

K4FOReplacement hydraulic pump for A4FO axial piston fixed pump

  • All-purpose high pressure pump with through drive
  • Size 22-500
  • Nominal pressure up to 350 bar
  • Maximum pressure up to 400 bar
  • Open circuit
Get in Touch PDF Download 3D Video Download
Features
  • Axial piston fixed displacement pump with swashplate, designed for hydrostatic drives in open circuits
  • For mobile and stationary applications
  • Flow is proportional to drive speed and displacement
  • High power/weight ratio
  • High total efficiency
  • Optimized size for particular installation
  • Excellent suction characteristics
  • Low noise level
  • Long service life
  • Through drive for mounting additional pumps
Technical Parameters
Size 22 28 71 125 180 250/H1) 500/H2)
Displacement Vg cm³ 22 28 71 125 180 250 500
Displacement,geometric,per revolution
Max. rotating speed2) nnom rpm 3600 3000 2200 1800 1800 1500/ 1900 1320/ 1500
Max. rotating speed3) nmax rpm 4500 3750 2700 2200 2100 1800/ 2100 1600/ 1800
Flow At Vg and nnom qV l/min 79 84 156 225 324 375/475 660/750
Power At Vg,nnom,and at Δp = 400 bar P kW 53 56 914) 1314) 1894) 219/2774) 385/4384)
Torque At Vg and Δp = 400 bar T Nm 140 178 3964) 6964) 10034) 13934) 27854)
Rotary stiffness of through shaft S c kNm/rad 29.9 29.9 = - - - -
P c kNm/rad - - 146 260 328 527 1145
Z c kNm/rad - - 146 263 332 543 1136
Moment of inertia for rotary group JGR kgm2 0.0017 0.0017 0.0121 0.0300 0.055 0.0959 0.3325
Max. angular acceleration α rad/s2 38000 38000 20000 13000 10000 8000 4800
Case volume V I 0.3 0.3 2.0 3.0 4.0 7.0 11.0
Weight (approx.) m kg 13.5 13.5 34 61 76 120 220
Description

K4FO fixed displacement piston pumps for hydrostatic drives in open circuits, as a replacement for A4FO, are axial piston rotary group pump with swashplate design.

Applications

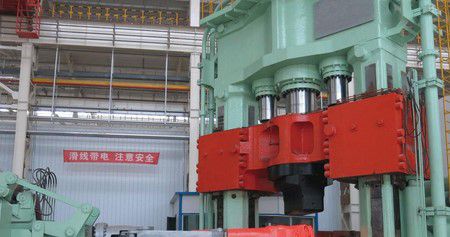

  • Forging & PressingForging & Pressing

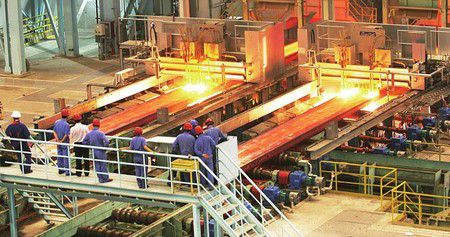

  • MetallurgicalMetallurgical
