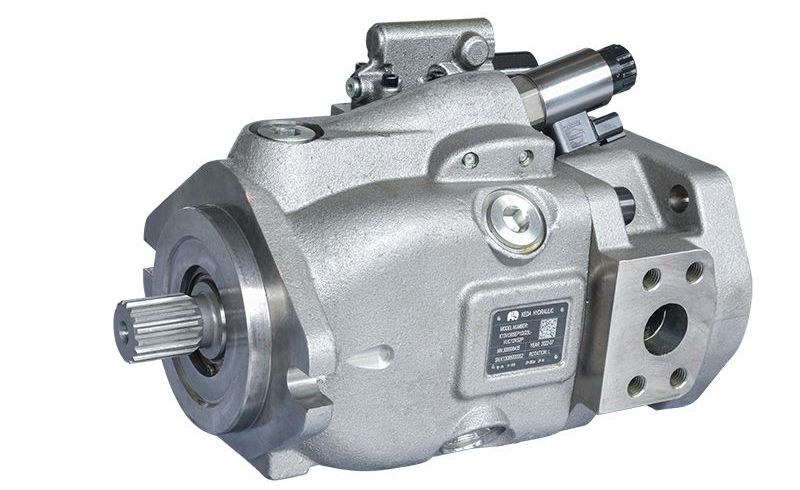

Axial Piston Variable Pump-open Circuit, K10VO

K10VO (Replacement for A10VO)Replacement hydraulic pump for A10VO axial piston variable pump

  • For machines with medium pressure requirements
  • Size 10-100
  • Nominal pressure 250 bar
  • Maximum pressure 315 bar
  • Open circuit
Get in Touch PDF Download 3D Video Download
Features
  • Variable axial piston pump with swashplate, designed for hydrostatic drive in an open circuit;
  • Flow proportional to the drive speed and displacement;
  • Steplessly change the flow by adjusting the cradle of the swashplate;
  • Strong power/weight ratio, small size and compact structure;
  • Low-noise;
  • Excellent oil suction characteristics;
  • Long service life;
  • Various control modes and short response time;
  • Through drive structure
Technical Parameters
Size 10 18 28 45(H) 63 71(H) 72 85 100(H) 140(H)
Displacement,geometric,per revolution qv.max mL/r 10.5 18 28 45 63 71/71.1 72 85 100 140
Rotating speed (ps,abs=1bar) qv.max nmax rpm 3600 3300 3000 2600 (3000) 2600 2200/2550 (2550) 2600 2500 2000(2300) 2300(2300) 1800/2200 (2050)
qv nmax,all rpm 4320 3900/ 3960 3600 3100/3120 (3300) 3140 2600/Δ(2800) 3140 3000 2400/Δ\ 2500(2500) 2100/Δ(2200)
Max. flow nmax Qv,max L/min 37 59 84 117(135) 163 156/181 (178) 187 212 200/230 \230(230) 252/308 (287)
nE QVE L/min 15 27 42 68 95 107 108 128 150 210
Max. power(ΔpN) nmax Pmax kW 16 30\25 39\35 55/49(63) 68 73/85(83) 77 89 93/107\96 (107) 118/144 (134)
nE PE kW 7 12.6\11 20\18 32\28 39 50 45 53 70\62 98
Torque(qv,max ) ΔpN Tmax Nm 42 80\71 125\111 200\179 250 316/317 321 338 445/446\398 623/624
ΔpE T Nm 17 30\29 45 72 100 113 114 135 159 223
Max. input torque S TE,max Nm 126 124 193 319 630 626 630 1157 1104\1157 1620
R TE,max Nm - 160 250 400 650 644 650 1215 -\1215 -
U TE,max Nm 60 59 105 188 306 300 306 628 595\628 Δ
W TE,max Nm - - 140 220 396 394 383 650 636\650 Δ/1220
P TE,max Nm 90 -\188 -\137 -\200 - - - - -\857 -
Max. through drive torque S TD,max Nm - 108 160 319 484 492 484 698 778\698 1266
R TD,max Nm - 120 176 365 484 548 484 698 -\Δ -
U TD,max Nm - 59 105 188 306 Δ/300 306 628 595\628 -\Δ
W TD,max Nm - - 140 220 396 Δ 383 650 636\650 -/1220
Rotary stiffness of drive shaft S C kNm/rad 9200 11087 22317 37500 6550 71884 65500 143000 121142\ 143000 169537
R C kNm/rad - 14850 26360 41025 69400 76545 69400 152900 -\152900 -
U C kNm/rad 6800 8090 16695 30077 49200 52779 49200 102900 101847\ 117900 Δ
W C kNm/rad - - 19898 34463 54000 57460 5400 117900 72 165594
P C kNm/rad 10700 -\13100 -\Δ -\Δ 66 76 95 125 72 -
Moment of inertia J kgm2 0.0006 0.00093 0.0017 0.0033 0.0056 0.0083/ 0.0087 0.0056 0.012 0.0167 0.0242
Max. angular acceleration α rad/s2 8000 6800 5500 4000 3300 3300/2900 3300 2700 2700/2400\Δ 2700/2000
Case volume V L 0.2 0.4\0.25 0.7\0.3 1.0\0.5 0.8 1.6 0.8 1 2.2/Δ 3.0
Weight (approx.) without through drive m kg 8 12\11.5 15 21\18 22 33/36.5 22 36 45/55\Δ 60/70
with through drive m kg - Δ\13 Δ\18 Δ\24 28 Δ/47 28 45 Δ/69\Δ Δ/73
Description

K10VO is an axial piston variable pump with axial piston rotary group in swashplate design for hydrostatic drive in an open circuit. The flow is proportional to drive speed and displacement and can be changed steplessly by controlling the cradle. The pistons are arranged axially to the drive shaft for variable displacement axial piston pump units with swashplate design. In an open circuit, the hydraulic fluid flows from the reservoir to the hydraulic pump, where it is fed to the hydraulic motor. From the consumer, the hydraulic fluid flows directly back to the reservoir.

Applications
  • Dump Mining TruckDump Mining Truck
  • ExcavatorExcavator
  • CraneCrane
