Axial Piston Variable Motor

Axial piston variable displacement motors are variable motors of the bent-axis design with axial piston rotary group for hydrostatic drive in open and closed circuits. In axial piston units with a bent axis design, the pistons, converting hydraulic pressure and angular displacement into torque, are arranged diagonally to the shaft and located directly above it. Specific torque and displacement can be achieved by adjusting the swashplate. In an open circuit, the hydraulic fluid flows from the reservoir to the hydraulic pump, where it is fed to the hydraulic motor through the directional valve. The output direction of rotation of the hydraulic motor can be changed, for example, by a directional valve. In a closed circuit, hydraulic fluid flows from the hydraulic motor directly back to the axial piston pump. Reversing the flow of hydraulic fluid in the pump changes the rotational output of the hydraulic motor.

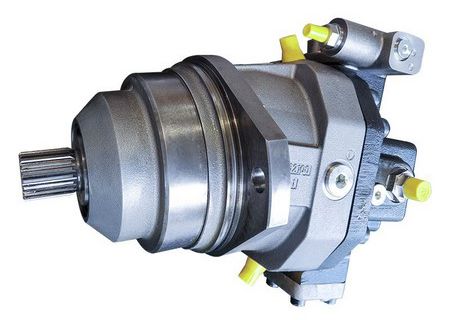

  • K6VM(Replacement for A6VM)
    K6VM(Replacement for A6VM)
    • All-purpose high pressure motor
    • Series 63, 65, 71
    • Nominal sizes: 80, 107, 160, 170, 200, 215, 500
    • Nominal pressure 400 bar
    • Maximum pressure 450 bar
    More

    Axial Piston Variable Motor K6VM(Replacement for A6VM)

  • K6VE(Replacement for A6VE)
    K6VE(Replacement for A6VE)
    • High pressure motors suitable for integration into mechanical gearboxes
    • Series 63, 65, 71
    • Nominal size 28, 55, 80, 107, 160, 170, 200, 250
    • Nominal pressure 400 bar
    • Maximum pressure 450 bar
    More

    Axial Piston Variable Motor K6VE(Replacement for A6VE)

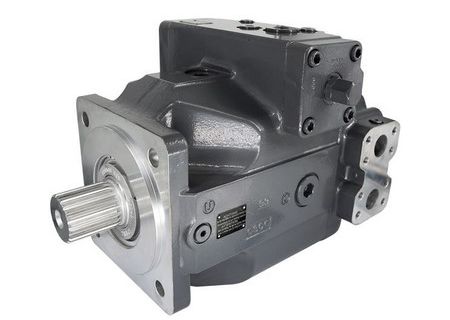

  • Axial Piston Variable Motor, K4VSM
    K4VSM
    • For open or closed circuits
    • Sizes 40-500
    • Maximum nominal pressure 350 bar
    • Maximum peak pressure 420 bar
    More

    Axial Piston Variable Motor, K4VSM
