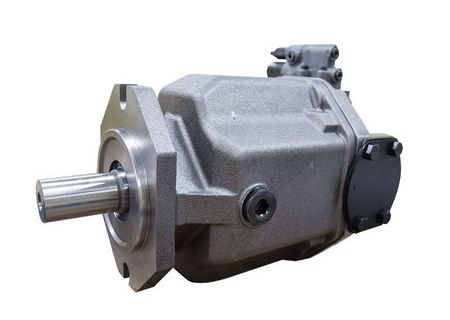

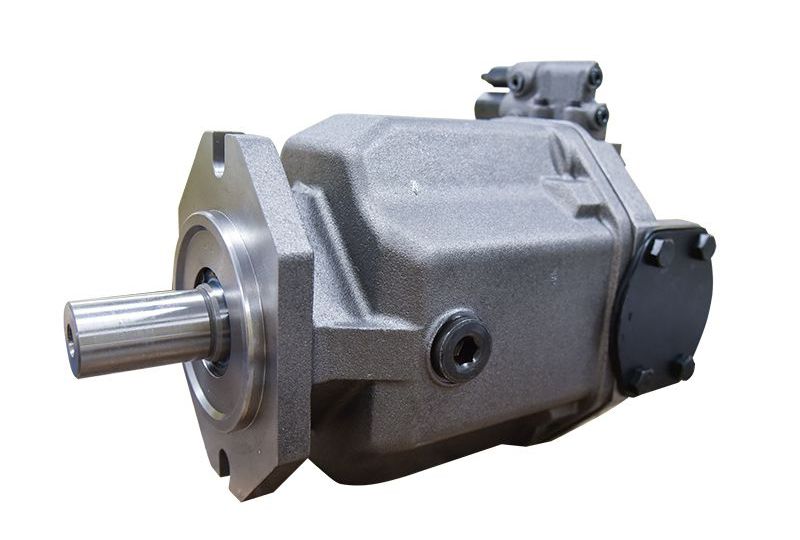

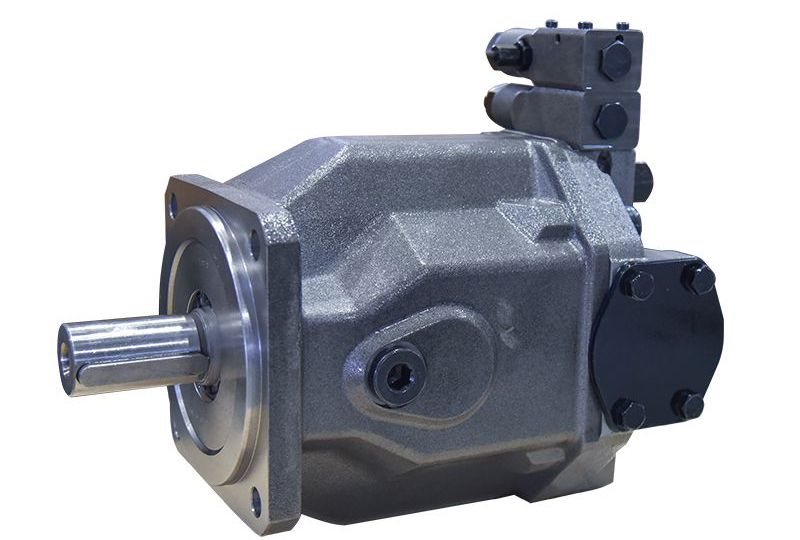

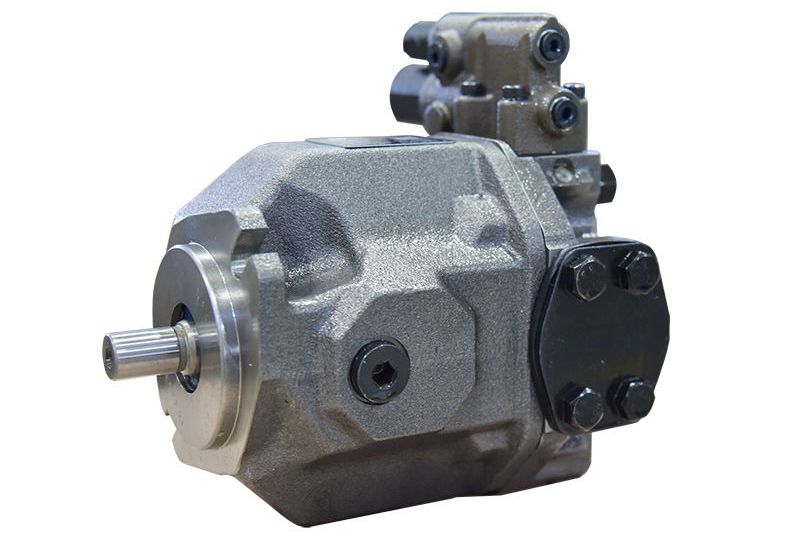

Axial Piston Variable Pump-open Circuit, K10VSO
Axial Piston Variable Pump-open Circuit, K10VSO Axial Piston Variable Pump-open Circuit, K10VSO Axial Piston Variable Pump-open Circuit, K10VSO

K10VSO (Replacement for A10VSO Series 52&31)Replacement hydraulic pump for A10VSO series 52&31 axial piston variable pump

  • All-purpose medium pressure pump
  • Size 10 -140
  • Nominal pressure 25 MPa
  • Maximum pressure 35 MPa
  • Open circuit
  • Swashplate design
  • Series 52,31
Get in Touch PDF Download 3D Video Download
Features
  • Through drive for mounting of further pumps up to same nominal size
  • Low operating noise
  • Long service life
  • Controls with short response times
  • Excellent suction characteristics
  • 2 drain ports
Technical Parameters
(size 10,theoretical values,without considering ηmh or ηv;values rounded off)
Size 10
Displacement Vg max cm 3 10.5
Max. speed1 at Vg max no max r/min 3600
Max. speed (peak speed) Inlet pressure Pabs
increase or Vg<Vg max
no max zul r/min 4300
Max. flow no max qv max L/min 37
nE=1450r/min L/min 15
Max. power at Δp = 250 bar no max Po max kW 16
nE=1450r/min kW 6.5
Max. torque at Δp = 250 bar Vg max Tmax Nm 42
Moment of inertia for drive shaft J kgm2 0.0006
Case volume L 0.2
Weight (without fluid) m kg 8
Max. axial force Fax max N 400
Max. radial force Fq max N 250
The above parameters are measured at an absolute pressure of 1 bar at Port S. If the displacement is reduced or the inlet pressure is increased,the speed can be increased to the maximum (see diagram).
(size 18, theoretical values, without considering ηmh or ηv; values rounded off)
Size 18
Displacement   Vg max cm³ 18
Max. speed 1 at Vg max   no max r/min 3300
Max. speed (limit) with inlet pressure Pabs increase or Vg < V g max   no max r/min 3900
Max. flow no max qo max L/min 59.4
  nE=1500r/min   L/min 27
Max. power at Δp = 250 bar no max Po max kW 27.7
  nE=1500r/min   kW 12.6
Max. torque at Vg max (Δp = 280 bar)   Mmax Nm 80.1
Max. torque at Vg max (Δp = 100 bar)   M Nm 28.6
Moment of inertia for drive shaft   J kgm2 0.00093
Case volume     L 0.4
Weight (without fluid)   m kg 12
Max. axial force on drive shaft   Fax max N 700
Max. radial force 2) on drive shaft   Fq max N 350
1) The above parameters are measured at an absolute pressure of 1 bar at Port S
2) Please contact KEDA for higher radial force
(size 28-140, theoretical values, without considering ηmh or ηv; values rounded off)
Size 28 45 71 100 140/High-S*
Displacement   Vg max cm³ 28 45 71 100 140/140
Max. speed1 at Vg max   no max r/min 3000 2600 2200 2000 1800/2050
Max. speed (limit) with inlet pressure Pabs increase or Vg < V g max   no max r/min 3600 3100 2600 2400 2100/2200
Max. flow no max qvo max L/min 84 117 156 200 252/287
  nE=1500r/min   L/min 42 68 107 150 210
Max. power at Δp = 250 bar no max Po max kW 39 55 73 93 118/134
  nE=1500r/min   kW 20 32 50 70 98
Max. torque at Vg max (Δp = 280 bar)   Mmax Nm 125 200 316 445 623
Max. torque at Vg max (Δp = 100 bar)   M Nm 45 72 113 159 223
Moment of inertia for drive shaft   J kgm2 0,0017 0,0033 0,0083 0,0167 0,0242
Case volume     L 0,7 1,0 1,6 2,2 3,0
Weight (without fluid)   m kg 15 12 33 45 60
Max. axial force on drive shaft   Fax max N 1000 1500 2400 4000 4800
Max. radial force2) on drive shaft   Fq max N 1200 1500 1900 2300 2800
1) The above parameters are measured at an absolute pressure of 1 bar at Port S. If the displacement is reduced or the inlet pressure is increased, the speed can be increased to the maximum (see diagram).
2) Please contact KEDA for higher radial force.
Description

K10VSO is a axial piston variable pump with hydrostatic drive shaft and swashplate design in open circuit. The flow of the axial piston variable pump is proportional to the drive speed and displacement, which can be steplessly changed by adjusting the swashplate angle. The open circuit axial piston pump is equipped with SAE flange UNC or SAE flange metric with two drain ports. The pump is tested to be high-speed, excellent suction performance, low noise, with high power/weight ratio. Variable displacement includes modes of constant pressure, constant power/constant flow, and constant power mode. The through drive design can be applied in multi-circuit systems. Our axial piston variable pump is widely used in metallurgy, mining, engineering machinery, shipping, civil aviation facility and other hydraulic transmission fields.

Applications

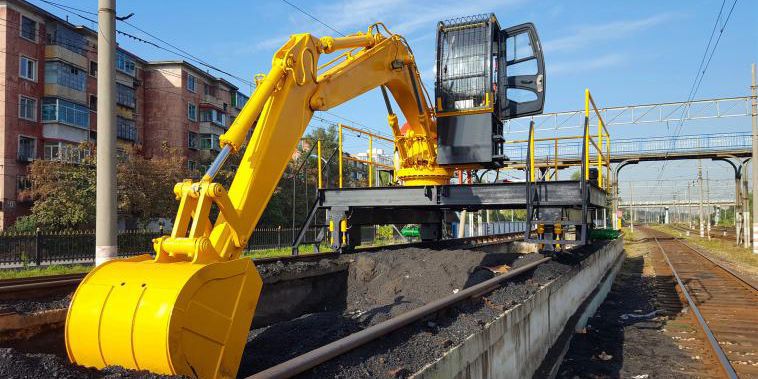

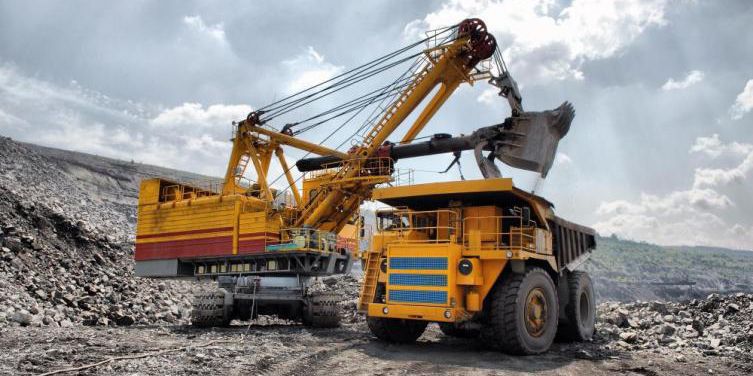

  • Coal MachineryCoal Machinery
  • Coal MachineryCoal Machinery

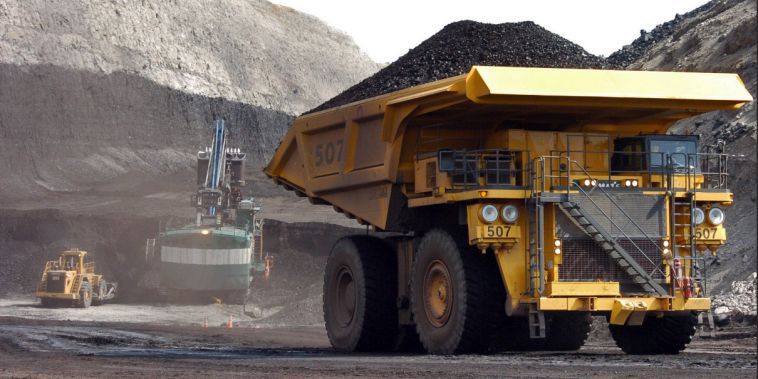

  • Mining TruckMining Truck
