VQ Series

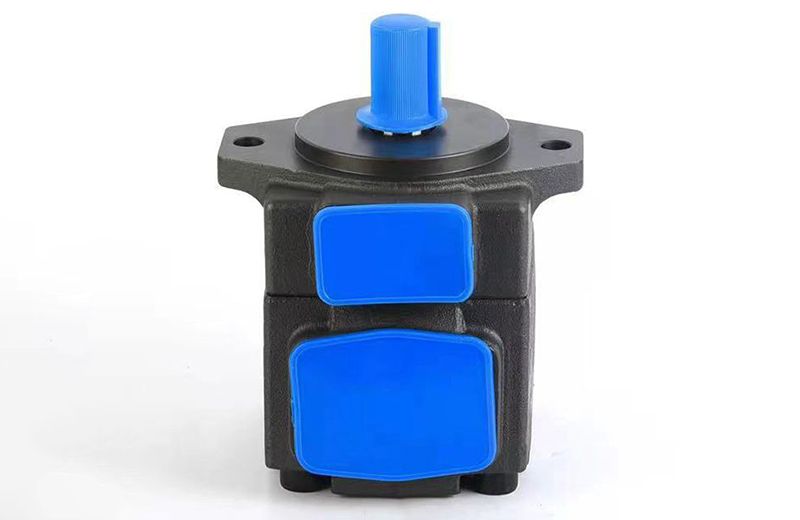

High Pressure Hydraulic Vane Pump, VQ Series

The VQ series hydraulic pump is a high-pressure, high-performance composition vane pump specially developed for construction machinery, especially mobile machinery.

  • Hydraulically balanced composition vanes, resisting higher pressure up to 21 MPa
  • Floating side plates which can compensate clearance automatically to reach balance, providing superior performance under high rotating speed and high pressure.
  • Bimetallic flexible side plates on each side of the motor dramatically improve the gears' engagement performance, giving higher efficiency and longer service life.
Get in Touch PDF Download
Technical Parameters
Model Displacement code Geometric displacement (r/min) Max. speed (r/min) Max. pressure (MPa) Typical outlet flow (L/min) at Max. speed and Max. pressure Typical outlet power (kW) at Max. speed and Max. pressure Weight
20VQ 2 7 2700 21 16.4 7.2 11.8
3 11.7 2700 21 24.4 10.8
4 15 2700 21 32.7 14.4
5 18 2700 21 42.3 17.9
6 19 2700 21 50.6 21.5
7 22 2700 21 58.8 23.7
8 27 2700 21 56.4 25.1
9 30 2700 21 73.4 26
10 31.5 2700 21 81.7 26.8
11 36 2700 21 88.5 27.7
12 40 2700 16 96.5 28.4
14 45 2700 14 115.4 29.1
25VQ 10 32.5 2700 21 81.4 35.2 14.5
12 38.3 2700 21 88.5 41
14 43.3 2500 21 103.8 46.6
15 47.3 2500 21 109.4 48.1
17 52.5 2500 21 119.2 51.8
19 60 2500 21 133.5 55.2
21 65 2500 21 146.2 61.9
35VQ 21 64 2500 21 145.5 63.7 22.7
25 79.2 2500 21 173.1 75.3
30 95 2500 21 211.5 87.7
32 101 2500 21 220.2 92.2
35 109 2400 21 230.8 98.5
38 118 2400 21 250 104.4
45 147 2400 21 271.2 99.8
45VQ 42 134 2400 17.5 255.8 91.4 34.1
45 147 2200 17.5 271.2 99.8
50 156 2200 17.5 303.8 105.2
57 180 2200 17.5 343.7 120.2
60 189 2200 17.5 369.2 126.8
66 208 2200 17.5 408.7 142.4
75 237 2200 14 460 120.2
