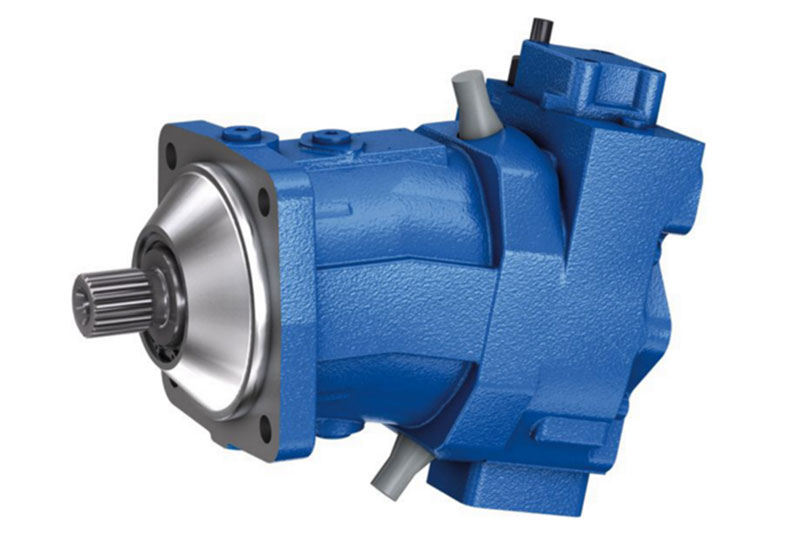

Axial Piston Variable Pump-open Circuit, K7VO

K7VO K7VO (Replacement for A7VO Series 63)Replacement hydraulic pump for A7VO series 63 axial piston variable pump

  • Robust high pressure pump for universal use
  • Size 28 - 500
  • Nominal pressure 350 bar
  • Maximum pressure 400 bar
  • Open circuit
Get in Touch 3D Video Download
Features
  • Robust pump with long service life
  • Hyperbolic power controller
  • Large variety of controls
  • Proven rotary group technology
  • High total efficiency
  • Optional high-speed version for nominal size 250
  • Long-life bearings are available in nominal sizes from 250 to 500
  • Bent-axis design
Technical Parameters
Size 28 55 80 107 160 250 355 500 250
Displacement Vg max cm³ 28.1 54.8 80 107 160 250 355 500 250
geometric,per revolution
Nominal pressure pnom bar 350 350 350 350 350 350 350 350 350
Max. pressure pmax bar 400 400 400 400 400 400 400 400 400
Max. speed 1) at Vg max nnom rpm 3150 2500 2240 2150 1900 1500 1320 1200 1800
Flow at Vg maxand n nom qV nom l/min 89 137 179 230 304 375 469 600 450
Power at qVnom and Pnom P kW 52 80 105 134 177 219 273 350 262
Torque at Vg max and Pnom M Nm 156 305 446 596 891 1391 1978 2785 1391
Weight (approx.) m kg 17 25 40 49 71 102 173 234 102
These values are valid for an absolute pressure of 1 bar at the suction port S and an optimum viscosity range of Vopt
Description

The KEDA K7VO axial piston variable pump features optimized rotary groups, which can improve the overall efficiency by 3 to 5 percent. The total efficiency of mobile working machines is increased, thus reducing the operator's fuel consumption and operating costs. Performing pressure determines its hydraulic efficiency. The higher the pressure, the lower the flow needed to transmit the same power, reducing the flow losses in the system. KEDA axial piston variable pump K7VO offers a pressure of 350 / 400 bar, a force much higher than comparable products typically used in concrete mixers and compact excavators.

Applications

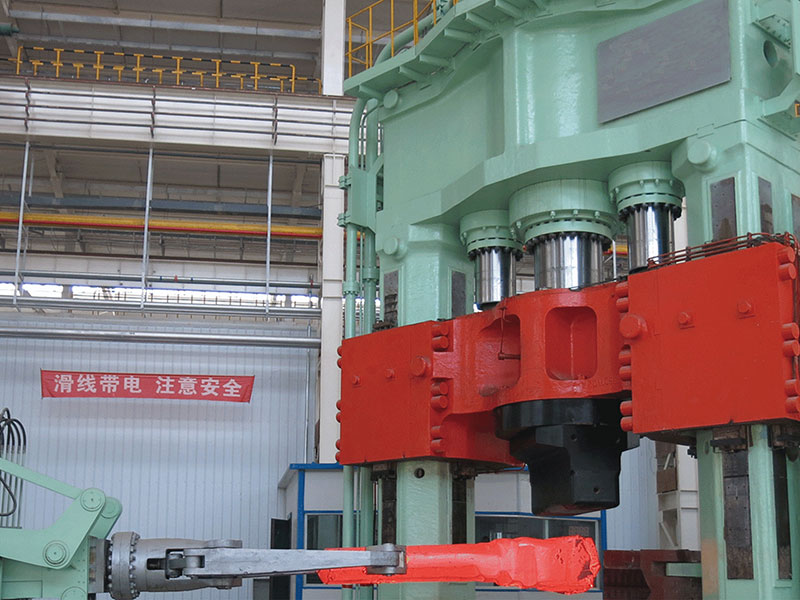

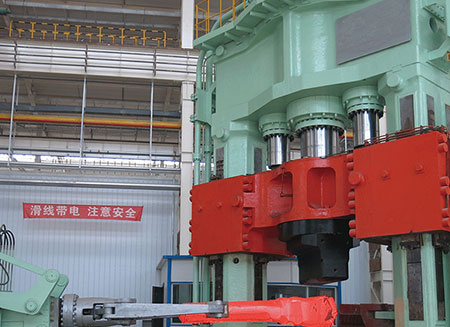

  • Forging MachineForging Machine

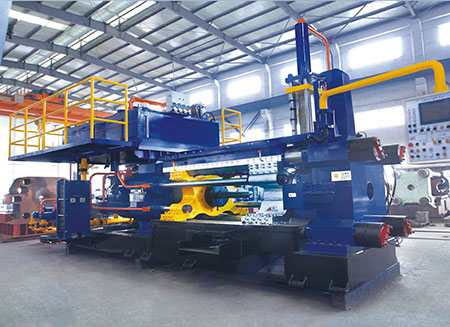

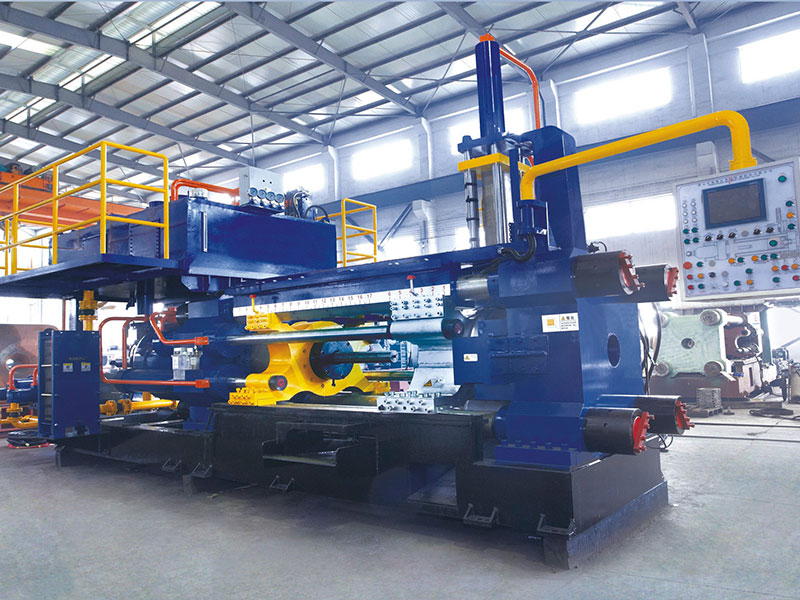

  • ExtruderExtruder
