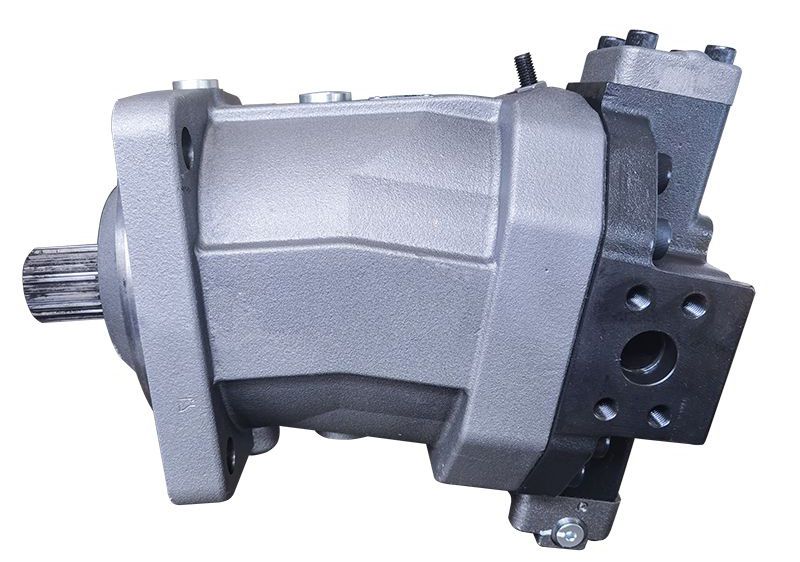

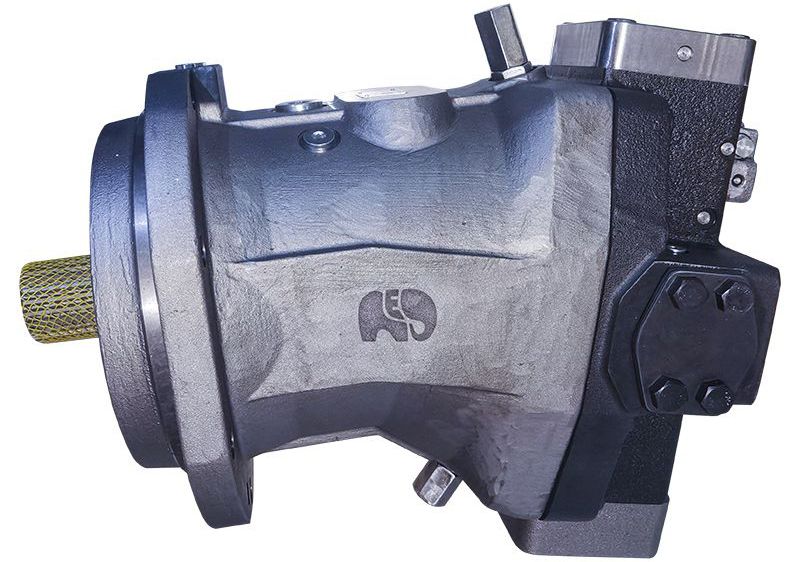

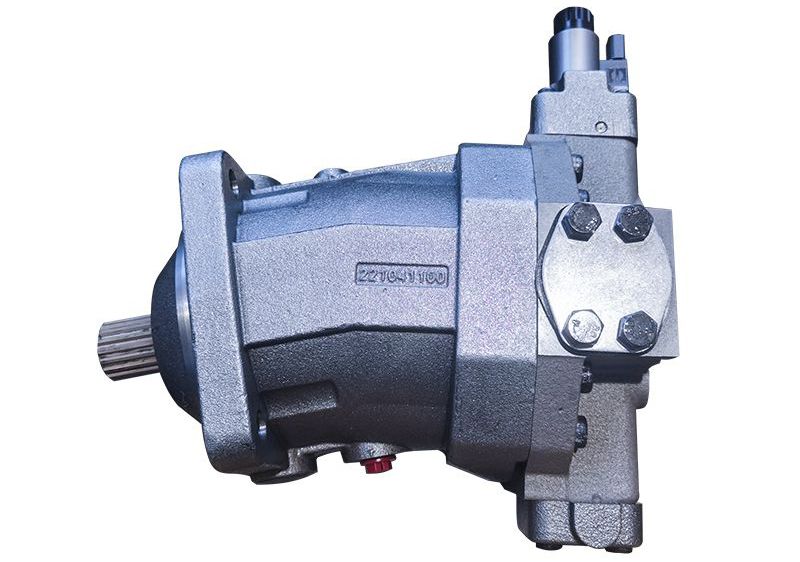

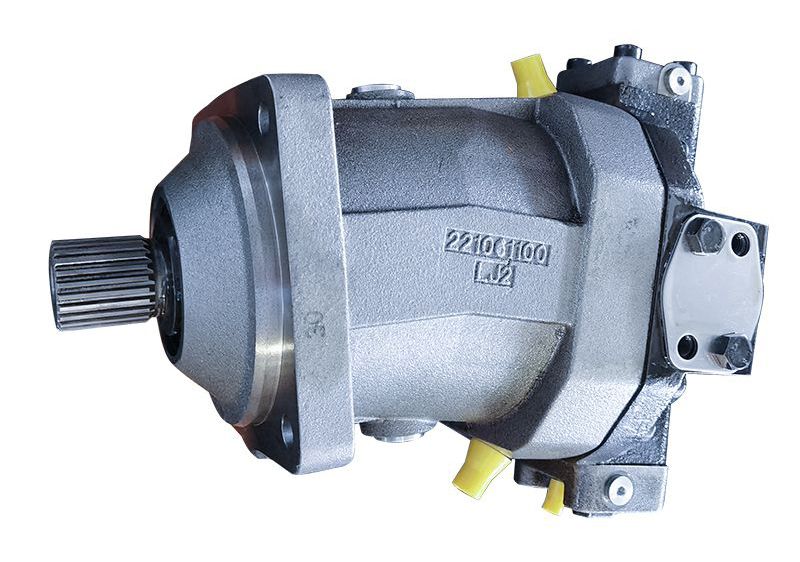

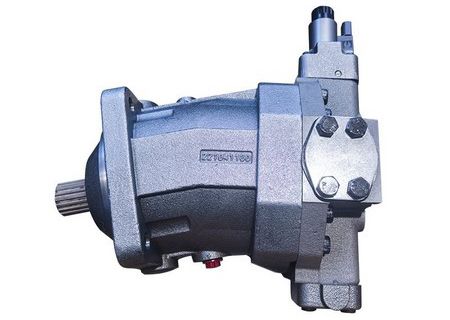

Axial Piston Variable Motor, K6VM
Axial Piston Variable Motor, K6VM Axial Piston Variable Motor, K6VM Axial Piston Variable Motor, K6VM Axial Piston Variable Motor, K6VM

K6VM (Replacement for A6VM Series 63&65&71)Replacement hydraulic motor for A6VM series 63&65&71 axial piston variable motor

  • All-purpose high pressure motor
  • Series 63, 65, 71
  • Nominal sizes: 80, 107, 160, 170, 200, 215, 500
  • Nominal pressure 400 bar
  • Maximum pressure 450 bar
  • Stepless displacement adjustment from 0 to maximum
  • Hydrostatic drive for open and closed circuits
Get in Touch PDF Download 3D Video Download
Features
  • Drive shaft capable of withstanding axial and radial loads
  • Swashplate angle indicator
  • Optional mounting position
  • Modular design, good power/weight ratio
  • Short control time
  • Operation on HF fluids possible with reduced operating parameters
Technical Parameters
Size 80 107 160 170 200 215 500
Series 65 65 65 71 65 71 63
Displacement Vg max cm³ 80 107 160 170 200 215 500
Vg x cm³ 51 68 61 65 76 130 417
Vg min cm³ 0 0 0 0 0 0 0
Nominal pressure pnom bar 400 400 400 450 400 400 350
Max. pressure pmax bar 450 450 450 530 450 450 400
Max. speed at Vg max1) nnom rpm 3900 3550 3100 3100 2900 2900 2000
at Vg < Vg x nmax rpm 6150 5600 4900 4900 4600 4800 2650
at Vg min nmax 0 rpm 7350 6300 5500 5750 5100 5500 2650
Inlet flow 2) at Vg max and nnom qV nom l/min 312 380 496 533 580 628 1000
Torque at Vg max and pnom M Nm 509 681 1019 1218 1273 1550 2785
Weight (approx.) m kg 34 47 64 64 80 80 210
Applications

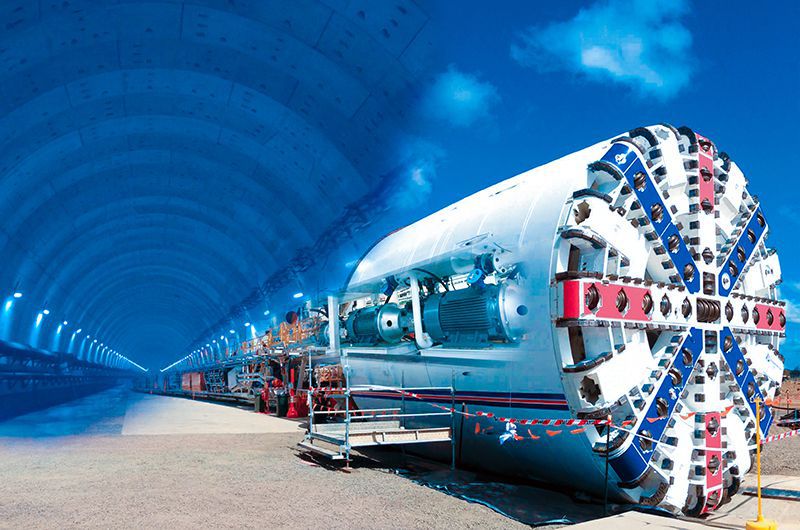

  • Shield machineShield machine

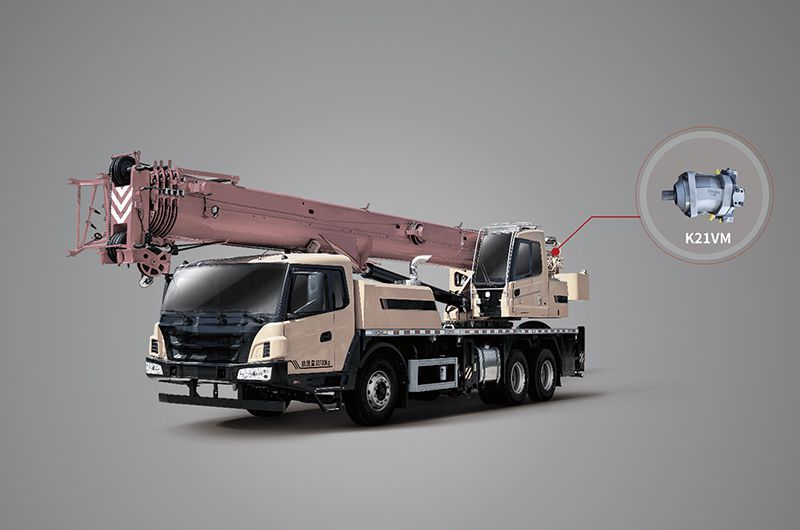

  • CraneCrane

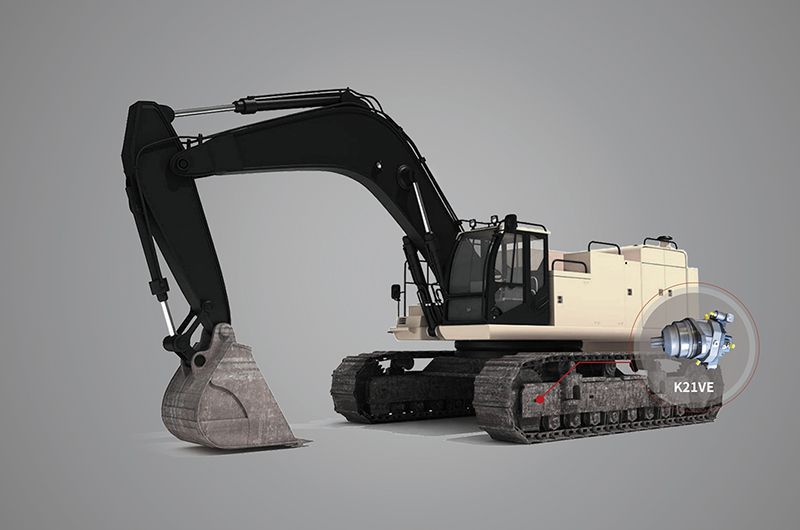

  • ExcavatorExcavator

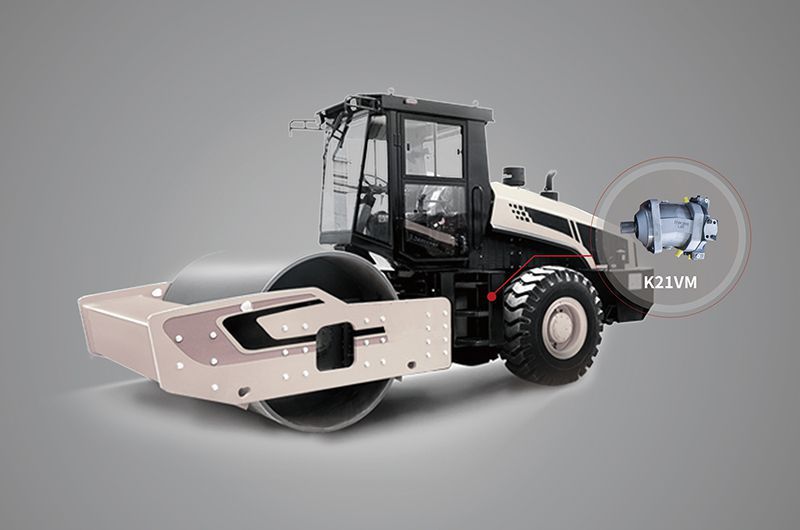

  • RollerRoller
Contact Us!

If you are still struggling to find the right product, or have request for quotation, or any concerns about our products, our experts will be happy to assist you.

Related Products

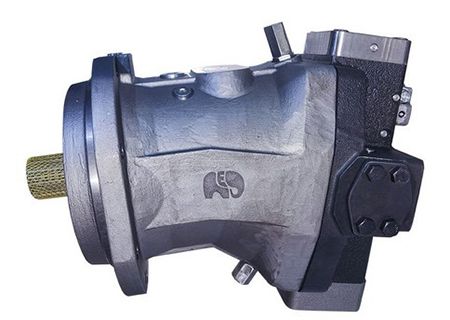

  • K6VM
