SQP Series

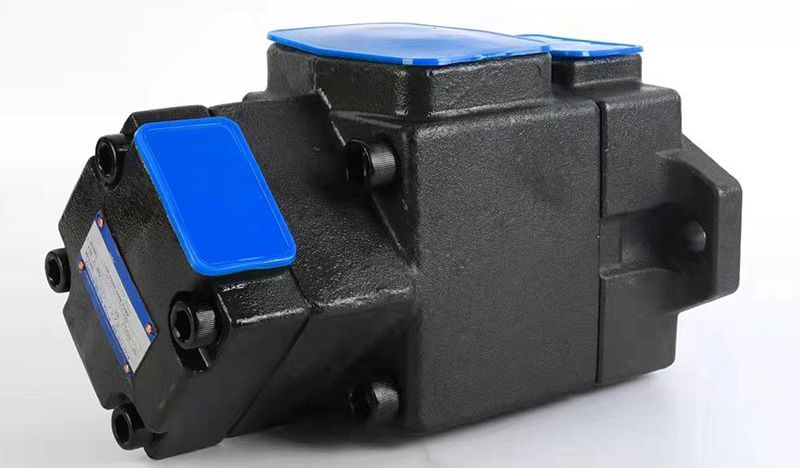

Hydraulic Vane Pump, SQP Series

SQP series hydraulic vane pump is a high-pressure and high-performance composition vane pump specially designed for hydraulic systems requiring low noise, such as plastic machinery, die-casting machinery, machine tools and engineering machinery.

  • Completely interchangeable pump core with the V series pump, more flexible and convenient to use
  • Pulsation attenuation, significantly reduces pressure pulsation, reducing the noise
  • Casing thickness improved, making it more robust, shock-resistive, and noise reduction
Get in Touch PDF Download
Technical Parameters
Pump shell No. Displacement code Geometric displacement (mL/r) SQP F11-SQP F3-SQP Min.speed (r/min)
Anti-wear hydraulic fluid or phospholipid Water glycol fluid Water-in-oil emulsion
Max. pressure (Mpa) Max. speed (r/min) Max. pressure (Mpa) Max. speed (r/min) Max. pressure (Mpa) Max. speed (r/min)
SQP1 2 7.5 13.8 1800 13.8 1200 13.8 1200 600
3 10.2
4 12.8 17.2 17.2
5 16.7
6 19.2
7 22.9
8 26.2
9 28.8
10 31.0
11 35.0
12 37.9 15.7 15.7
14 44.2 13.8 13.8
SQP2 10 32.5 17.2 1800 17.2 1200 13.8 1200 600
12 38.3
14 43.3
15 46.7
17 52.5
19 59.2
21 65.0
SQP3 21 66.7 17.2 1800 17.2 1200 13.8 1200 600
25 79.2
30 95.0
32 100
35 109
38 118
45 140
SQP4 42 134 17.2 1800 17.2 1200 13.8 1200 600
45 140
50 156
57 178
60 189
66 207
75 237

Instantaneous pressure exceeding 10% of the maximum pressure is allowed for 0.5 seconds at rated displacement USapm at 1200 r/min and 0.69 MPa (100 psi).
