Hydraulic Flushing Unit

Hydraulic flushing units remove the pollutants caused by the pipeline installation before commissioning your hydraulic system. By cleaning the pipelines, the units remove the impurities so that the hydraulic oil is clean within the pollution tolerance of the critical hydraulic units of the system. Hydraulic flushing units are a vital measure to ensure the reliability and service life of the hydraulic units, which is necessary to prevent initial equipment failure best.
KEDA’s FE pipeline flushing unit series and FTE pipeline flushing and load test unit are specially designed by KEDA’s engineers for the appliance in marine and metallurgy industries. The hydraulic flushing units bear an elegant and compact design. They can be used conveniently under low noise with reliable performance. It is especially suitable for the pipeline flushing and load test operation of the hydraulic system pipelines for large vessels and metallurgical equipment.
Hydraulic oil, lubricating oil, or diesel oil is applicable. Please specify the medium when ordering.

The series comes with capacities of 120L, 240L, 400L, 600L, 800L, 1200L, 1800L, 2400L and 3600 L.

Features
  • PLC with a touch screen for working status.
  • Hydraulic pulses are automatically generated for flushing, whose interval can be set on the touch screen; multiple flushing flows are applicable.
  • After the flushing, the working medium is filtered by a multi-stage filter to filter out pollutants best and maintain the cleanliness of the working medium.
  • Electric signal alarm device on the filter to alert the personnel when replacement is needed.
  • Fault types displayed on the screen. Engineers can use the screen to set the automatic start and stop points for the cooler and heater.
  • Temperature of the working medium is visible on the screen, and the flushing pressure and test pressure are displayed directly through the pressure gauge.
Specifications
  • Working medium: VG32, VG46 or VG68 antiwear hydraulic oil. For water, water glycol oil, lubricating oil, diesel oil or kerosene, please specify the medium when ordering.
  • Cleanliness: NAS1638 Class 5, 6, 7, 8 (optional)
  • Storage tank material: plain carbon steel, stainless steel 304, stainless steel 316 (optional)
Optional general function
  • Heater: Increase the temperature of the working medium under low temperatures to improve the flushing effect.
  • Air cooler: Cool the working medium if the operating temperature stays high for a long time.
  • Barge pumping unit: Pumps the oil from or to the unit.
Optional additional features
  • Flow meter: Detects the real-time flow and displays the value on the touch screen.
  • Online contamination monitor: Detects the cleanliness of the pipeline after flushing.
  • Remote control: Operating parameters can be displayed on mobile phones or computers, and equipment can be started and stopped remotely.

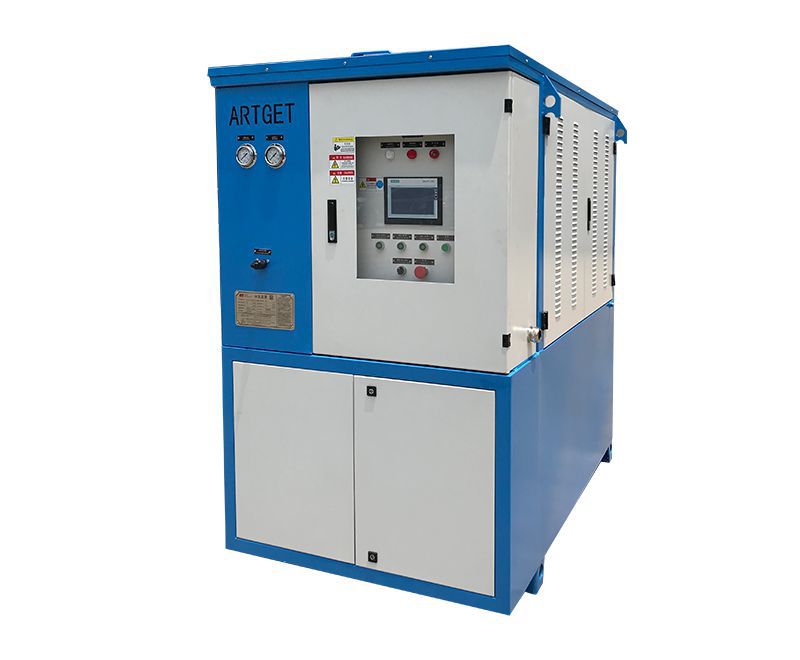

Pipeline Flushing Equipment 120L
Pipeline Flushing Equipment 120L
Get in Touch
Item Parameters
Dimension 1450 * 1350 * 1850
Fluid capacity 600 L
Inlet/outlet caliber Inlet port: DN32; outlet port: DN32
Pulse flushing Yes
Max. flushing flow 120 L/min
Flush flow Fixed value:117 L/min
Flushing pressure 2.5 MPa 4 MPa 6.3 MPa
Total power of flushing motor 7.5 kW 11 kW 15 kW
Max. test flow 2.5 L/min 14 L/min
Max. test pressure 31.5 MPa, 35 MPa, 42 MPa 16 MPa, 25 MPa, 31.5 MPa, 35 MPa
Total power of test motor 2.2 kW 5.5 kW, 7.5 kW, 11 kW, 11 kW

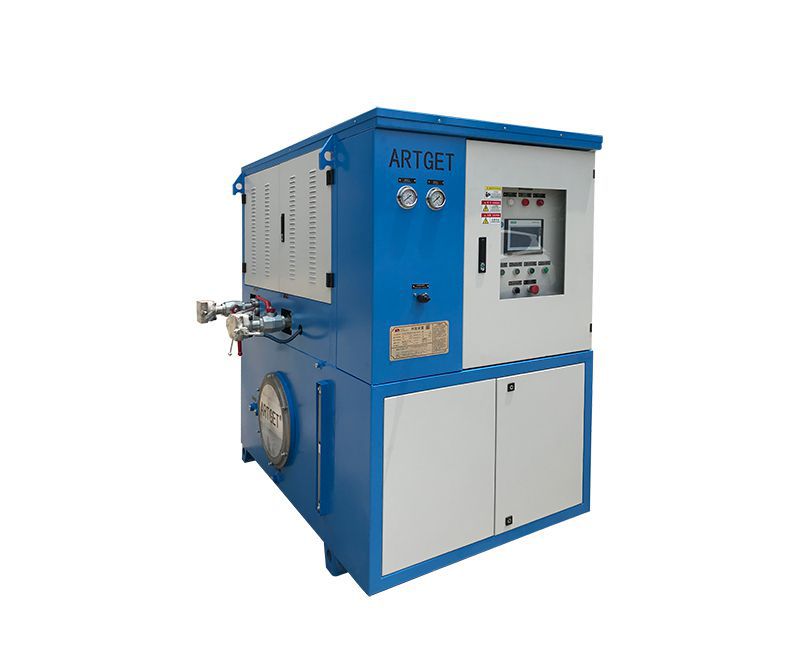

240L Pipeline Flushing Equipment
240L Pipeline Flushing Equipment
Get in Touch
Item Parameters
Dimension 1750 * 1350 * 1850
Fluid capacity 900 L
Inlet/outlet caliber Inlet port: DN 40; outlet port: DN 40
Motor power Motor power: 15kW to 30 kW * 1
Pulse flushing Yes
Max. flushing flow 240 L/min
Flush flow Fixed value: 235L/min
Flushing pressure 2.5 MPa 4 MPa 6.3 MPa
Total power of flushing motor 15 kW 22 kW 30 kW
Max. test flow 2.5 L/min 14 L/min
Max. test pressure 31.5 MPa, 35 MPa, 42 MPa 16 MPa, 25 MPa, 31.5 MPa, 35 MPa
Total power of test motor 2.2 kW 5.5 kW, 7.5 kW, 11 kW, 11 kW
400L Pipeline Flushing Equipment
400L Pipeline Flushing Equipment
Get in Touch
Item Parameters
Dimension 1950 * 1550 * 1850
Cleanliness NAS1638 or Class 5, 6, 7, 8
Fluid capacity 1200 L
Inlet/outlet caliber Inlet port: DN 50; outlet port: DN 50
Pulse flushing Yes
Max. flushing flow 400 L/min
Flush flow 205 L/min or 410 L/min
Flushing pressure 2.5 MPa 4 MPa 6.3 MPa
Total power of flushing motor 22 kW 37 kW 55 kW
Max. test flow 2.5 L/min 14 L/min
Max. test pressure 31.5 MPa, 35 MPa, 42 MPa 16 MPa, 25 MPa, 31.5 MPa, 35 MPa
Total power of test motor 2.2 kW 5.5 kW, 7.5 kW, 11 kW, 11 kW
600L Pipeline Flushing Equipment
600L Pipeline Flushing Equipment
Get in Touch
Item Parameters
Dimension 1950 * 1550 * 1850
Fluid capacity 1200 L
Inlet/outlet caliber Inlet port: DN 50; outlet port: DN 50
Pulse flushing Yes
Max. flushing flow 600 L/min
Flush flow 295 L/min or 590 L/min
Flushing pressure 2.5 MPa 4 MPa 6.3 MPa
Total power of flushing motor 37 kW 55 kW 75 kW
Max. test flow 2.5 L/min 14 L/min
Max. test pressure 31.5 MPa, 35 MPa, 42 MPa 16 MPa, 25 MPa, 31.5 MPa, 35 MPa
Total power of test motor 2.2 kW 5.5 kW, 7.5 kW, 11kW, 11kW
800L Pipeline Flushing Equipment
800L Pipeline Flushing Equipment
Get in Touch
Item Parameters
Dimension 1950 * 1550 * 1850
Fluid capacity 2000 L
Inlet/outlet caliber 2 inlet ports: DN 50; 2 outlet ports: DN 50
Pulse flushing Yes
Max. flushing flow 800 L/min
Flush flow 205 L/min, 410 L/min, 615 L/min, or 820 L/min
Flushing pressure 2.5 MPa 4 MPa 6.3 MPa
Total power of flushing motor 2 * 22 kW 2 * 37 kW 2 * 55 kW
Max. test flow 2.5 L/min 14 L/min
Max. test pressure 31.5 MPa, 35 MPa, 42 MPa 16 MPa, 25 MPa, 31.5 MPa, 35 MPa
Total power of test motor 2.2 kW 5.5 kW, 7.5 kW, 11 kW, 11 kW
1200L Pipeline Flushing Equipment
1200L Pipeline Flushing Equipment
Get in Touch
Item Parameters
Dimension 2350 * 2050 * 1850
Fluid capacity 2000 L
Inlet/outlet caliber 2 inlet ports: DN 50; 2 outlet ports: DN 50
Pulse flushing Yes
Max. flushing flow 1200 L/min
Flush flow 295 L/min, 590 L/min, 885 L/min, or 1180 L/min
Flushing pressure 2.5 MPa 4 MPa 6.3 MPa
Total power of flushing motor 2 * 37 kW 2 * 55 kW 2 * 75 kW
Max. test flow 2.5 L/min 14 L/min
Max. test pressure 31.5 MPa, 35 MPa, 42 MPa 16 MPa, 25 MPa, 31.5 MPa, 35 MPa
Total power of test motor 2.2 kW 5.5 kW, 7.5 kW, 11 kW, 11 kW
1800L Pipeline Flushing Equipment
1800L Pipeline Flushing Equipment
Get in Touch
Item Parameters
Dimension 4000 * 2000 * 2200
Fluid capacity 3000 L
Inlet/outlet caliber 3 inlet ports: DN 50; 3 outlet ports: DN 50
Pulse flushing Yes
Max. flushing flow 1800 L/min
Flush flow 295 L/min, 590 L/min, 885 L/min, 1180 L/min, 1475 L/min, or 1770 L/min
Flushing pressure 2.5 MPa 4 MPa 6.3 MPa
Total power of flushing motor 3 * 37 kW 3 * 55 kW 3 * 75 kW
Max. test flow 2.5 L/min 14 L/min
Max. test pressure 31.5 MPa, 35 MPa, 42 MPa 16 MPa, 25 MPa, 31.5 MPa, 35 MPa
Total power of test motor 2.2kW 5.5 kW, 7.5 kW, 11 kW, 11 kW
2400L Pipeline Flushing Equipment
2400L Pipeline Flushing Equipment
Get in Touch
Item Parameters
Dimension 4000 * 2250 * 2200
Fluid capacity 4000 L
Inlet/outlet caliber 4 inlet ports: DN 50; 4 outlet ports: DN 50
Pulse flushing Yes
Max. flushing flow 2400 L/min
Flush flow 295 L/min, 590 L/min, 885 L/min, 1180 L/min, 1475 L/min, 1770 L/min, 2065 L/min, or 2360 L/min
Flushing pressure 2.5 MPa 4 MPa 6.3 MPa
Total power of flushing motor 4 * 37 kW 4 * 55 kW 4 * 75 kW
Max. test flow 2.5 L/min 14 L/min
Max. test pressure 31.5 MPa, 35 MPa, 42 MPa 16 MPa, 25 MPa, 31.5 MPa, 35 MPa
Total power of test motor 2.2 kW 5.5 kW, 7.5 kW, 11kW, 11kW
3600L Pipeline Flushing Equipment
3600L Pipeline Flushing Equipment
Get in Touch
Item Parameters
Dimension 4500 * 2250 * 2200
Fluid capacity 5000 L
Inlet/outlet caliber 6 inlet ports: DN 50; 6 outlet ports: DN 50
Pulse flushing Yes
Max. flushing flow 3600 L/min
Flush flow 590 L/min, 1180 L/min, 1770 L/min, 2360 L/min, 2950 L/min, 3540 L/min, 2065 L/min, or 2360 L/min
Flushing pressure 2.5 MPa 4 MPa 6.3 MPa
Total power of flushing motor 6 * 37 kW 6 * 55 kW 6 * 75 kW
Max. test flow 2.5 L/min 14 L/min
Max. test pressure 31.5 MPa, 35 MPa, 42 MPa 16 MPa, 25 MPa, 31.5 MPa, 35 MPa
Total power of test motor 2.2 kW 5.5 kW, 7.5 kW, 11 kW
