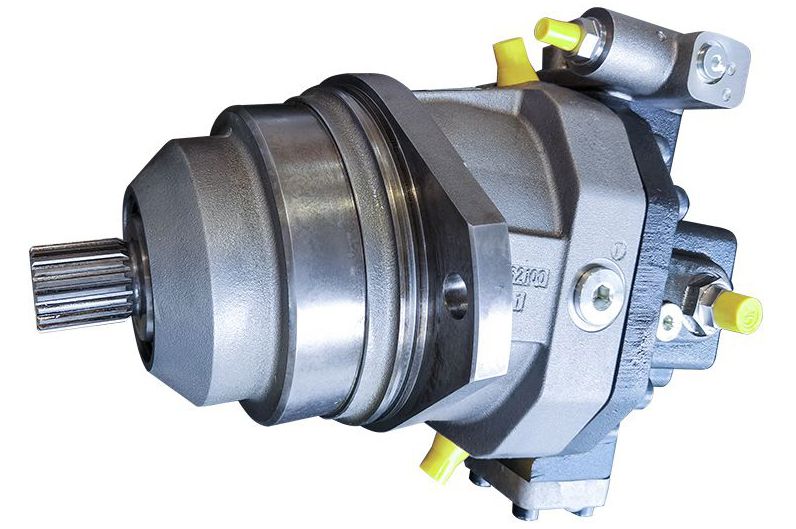

Axial Piston Variable Motor, K6VE

K6VE (Replacement for A6VE Series 63&65&71)Replacement hydraulic motor for A6VE series 63&65&71 axial piston variable motor

  • High pressure motors suitable for integration into mechanical gearboxes
  • Series 63, 65, 71
  • Nominal size 28, 55, 80, 107, 160, 170, 200, 250
  • Nominal pressure 400 bar
  • Maximum pressure 450 bar
  • Hydrostatic drive for open and closed circuits
Get in Touch PDF Download 3D Video Download
Features
  • Variable plug-in motor with axial tapered piston rotary group of bent-axis design, for hydrostatic drives in open and closed circuits
  • Easy to install by simply pluging the pump into the mechanical gearbox
  • Stepless displacement adjustment from V g max to Vg min = 0
  • Wide control range, to meet the requirements of high speed and high torque
  • Recessed mounting flange to save space
Technical Parameters
Size 28 55 80 107 160 170 200 250
Series 63 65 65 65 65 71 65 63
Displacement Vg max cm³ 28.1 54.8 80 107 160 170 200 250
Vg x cm³ 18 35 51 68 61 65 76 188
Vg min cm³ 0 0 0 0 0 0 0 0
Nominal pressure pnom bar 400 400 400 400 400 450 400 350
Max. pressure pmax bar 450 450 450 450 450 530 450 400
Max. speed at Vg max nnom rpm 5550 4450 3900 3550 3100 3100 2900 2700
at Vg < Vg max nmax rpm 8750 7000 6150 5600 4900 4900 4600 3300
at Vg min nmax 0 rpm 10450 8350 7350 6300 5500 5750 5100 3300
Inlet flow at Vg max and nnom qV nom l/min 156 244 312 380 496 533 580 675
Torque at Vg max and pnom M Nm 179 349 509 681 1019 1218 1273 1391
Weight (approx.) m kg 16 28 34 47 64 64 80 110
Applications

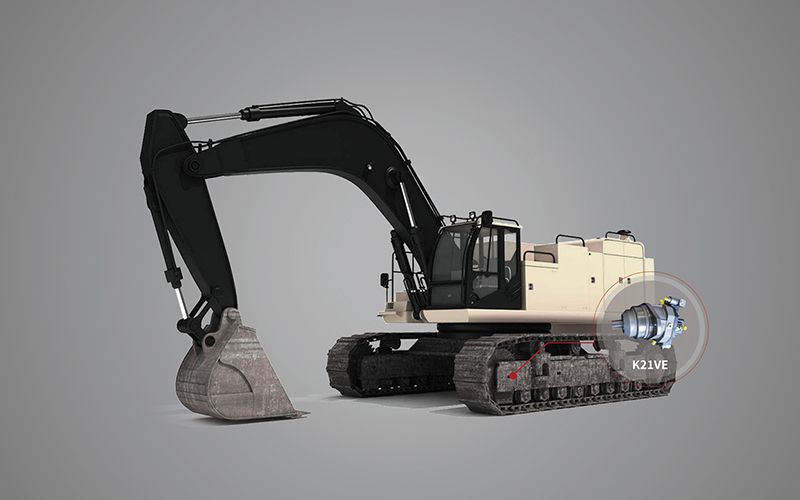

  • ExcavatorExcavator

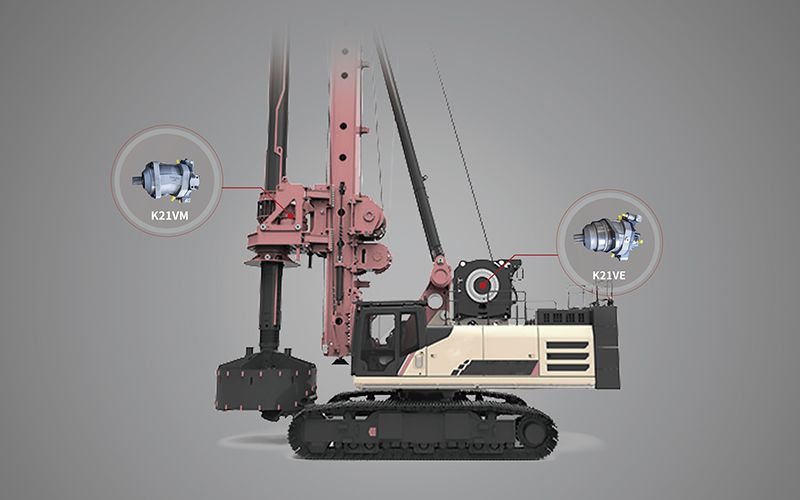

  • Rotary drilling rigRotary drilling rig
